Low Alloy Electrode

SUPER OPTIMAL 7010-G

SUPER OPTIMAL 7010-G

SUPER OPTIMAL 7010-G

KEY SPECIFICATIONS :

Product Name AWS/SFA Yield Strength N/mm2 Tensile Strength N/mm2 ) Elongation A5(%) Impact V (J)  Welding Conditions
SUPER OPTIMAL 7010-G E 7010-G ≥420 500-640 ≥24 ≥47 DC(+)

SUPER OPTIMAL 7016-A1

SUPER OPTIMAL 7016-A1

SUPER OPTIMAL 7016-A1

KEY SPECIFICATIONS :

Product Name AWS/SFA Yield Strength N/mm2 Tensile Strength N/mm2 ) Elongation A5(%) Impact (J)  Welding Conditions
SUPER OPTIMAL 7016-A1 E 7016-A1-H4 ≥420 510-640 ≥24 ≥47 at -20◦ C DC+;AC
SUPER OPTIMAL 7016-G E 7016-G-H4 ≥460 530-680  ≥24  >60 DC+;AC



TYPE OF PACKING :

Normal Special Packing
Inner Packing Outer Packing
2 & 5Kg Vac Pack 10 & 20Kg 2Kg/5Kg Plastic Tube

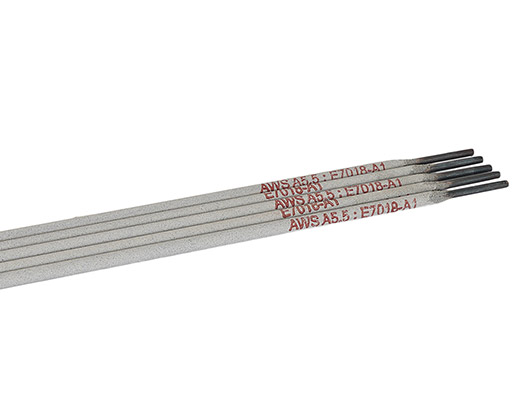

SUPER OPTIMAL 7018-A1

SUPER OPTIMAL 7018-A1

SUPER OPTIMAL 7018-A1

Product Name AWS/SFA Yield Strength N/mm2 Tensile Strength N/mm2 ) Elongation A5(%) Charpy Impact (J)  Welding Conditions Unique Feature
SUPER OPTIMAL 7018-A1 E 7018-A1 ≥450 520-620 ≥26 120J at -20°C AC;DC+ Excellent weldability. Best suited positional welding. Excellent creep resistant.
SUPER OPTIMAL 7018-G E 7018 G ≥400 510-650 ≥24 ≥70J at -60°C AC;DC+ Excellent weldability. Tough and crack free joints.

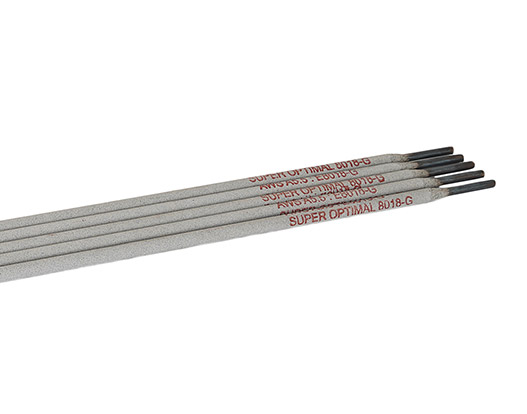

SUPER OPTIMAL 8018-G

SUPER OPTIMAL 8018-G

SUPER OPTIMAL 8018-G

Product Name AWS/SFA Yield Strength N/mm2 Tensile Strength N/mm2 ) Elongation A5(%) Impact VJ-50°C Welding Conditions Unique Feature
SUPER OPTIMAL 8018-G E 8018-G ≥460 ≥580 ≥22 ≥47 AC;DC+ Excellent toughness and formability. Highly crack resistant joint welding.
SUPER OPTIMAL 8018-W2 E 8018 – W2 ≥480 560-650 ≥21 ≥47 DC(+) /AC Specially designed low hydrogen

moisture resistance basic type copper bearing corrosion resistance electrode for low alloy

eathering–type
structural steels. Excellent weldability in all positions. Easy slag removal

finely rippled
smooth weldbead.







Product Name AWS/SFA Yield Strength N/mm2 Tensile Strength N/mm2 ) Elongation A5(%) Charpy Impact VJ+20°C Welding Conditions Unique Feature
SUPER OPTIMAL 8018-B2 E 8018-B2 ≥460 550-650 ≥20 ≥47 AC;DC+ Ultra smooth finely rippled bead. Best in
class mechanical properties.
SUPER OPTIMAL 8018-B8 E 8018 B-8 ≥500 ≥600 ≥20 ≥47 DC(+) Basic coated MMA electrode used for creep resistant and high pressure hydrogen resistant boiler and pipe steels specially in petrochemical industry with operating temperature upto +600°C.
SUPER OPTIMAL 8018-B6 E 8018 B-6 ≥500 ≥600 ≥21 ≥47 DC(+)

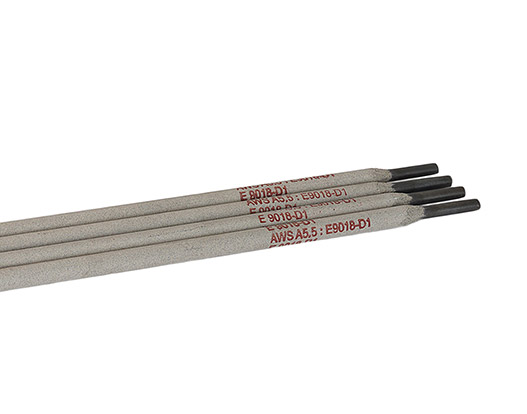

SUPER OPTIMAL 9018-D1

SUPER OPTIMAL 9018-D1

SUPER OPTIMAL 9018-D1

Product Name AWS/SFA Yield Strength N/mm2 Tensile Strength N/mm2 ) Elongation A5(%) Impact (J)  Welding Conditions Unique Feature
SUPER OPTIMAL 9018-D1 E 9018-D1 ≥550 650-750 ≥20 ≥47J at -50° AC;DC(+) Ideally suitable for welding
of high strength steels

castings etc.
SUPER OPTIMAL 9018-B3 E 9018-B3 ≥550 620-750 ≥20 >47 at +20°C AC;DC+ Excellent weldability and mechanical properties..
SUPER OPTIMAL 9018-M E 9018-M H4 540-620 650-700 ≥26 ≥47J at -50° AC;DC+ Extra Low hydrogen. Tough and crack free welded joints. Excellent mechanical properties.
SUPER OPTIMAL 9018-G E 9018-G ≥550 620-720 ≥20 >47J at +20°C AC;DC+ Excellent weldability extra low hydrogen

self peeling slag

best in class mechanical properties..



Packaging Details

Normal Special Packing
Inner Packing Outer Packing
2 & 5Kg Vac Pack 10 & 20Kg 2Kg/5Kg Plastic Tube



Other packaging information   :

For Plastic Tube pack

the outer pack weight will be same as vac & normal pack

For lbs packing :- 2kg :- 5 Lbs

and 5Kg :- 10Lbs

10kg :- 20Lbs

20kg :- 40Lbs

For 2kg = 2x5=10kg

For 5kg = 5x4=20kg

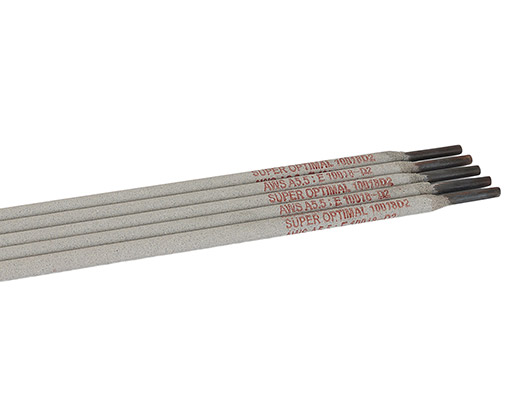

SUPER OPTIMAL 10018-D2

SUPER OPTIMAL 10018-D2

SUPER OPTIMAL 10018-D2

Product Name AWS/SFA Yield Strength N/mm2 Tensile Strength N/mm2 ) Elongation A5(%) Impact (J) Welding Conditions Unique Feature
SUPER OPTIMAL 10018-D2 E 10018-D2 ≥630 700-850 ≥22 40 at -50°C AC;DC+ Smooth finely rippled weld bead. Excellent impact notch toughness at -50°C. Recommended for critical welding applications.
SUPER OPTIMAL 10018-G E 10018-G ≥680 760-850 ≥18 ≥47 at -50°C AC;DC+ Superior weldability

concentrated arc

smooth weld bead and self releasing slag.



Packaging Details

Normal Special Packing
Inner Packing Outer Packing
2 & 5Kg Vac Pack 10 & 20Kg 2Kg/5Kg Plastic Tube

SUPER OPTIMAL 11018-G

SUPER OPTIMAL 11018-G

SUPER OPTIMAL 11018-G

Product Name AWS/SFA Yield Strength N/mm2 Tensile Strength N/mm2 ) Elongation A5(%) Impact (J)  Welding Conditions Unique Feature
SUPER OPTIMAL 11018-G E 11018-G ≥720 ≥780 ≥16 ≥27 at -51°C AC;DC+ Superior weldability

concentrated smooth arc

all positions

crack free joints.
SUPER OPTIMAL 11018-M E 11018-M 680-760 760-850 ≥20 ≥47 at -50°C AC;DC+ "Excellent weldability. Best in class mechanical properties."



Packaging Details

Normal Special Packing
Inner Packing Outer Packing
2 & 5Kg Vac Pack 10 & 20Kg 2Kg/5Kg Plastic Tube

SUPER OPTIMAL 12018-G

SUPER OPTIMAL 12018-G

SUPER OPTIMAL 12018-G

Product Name AWS/SFA Yield Strength N/mm2 Tensile Strength N/mm2 ) Elongation A5(%) Charpy impact value ISO-V J 0°C Welding Conditions
SUPER OPTIMAL 12018-G E 12018-G ≥750 ≥850 ≥15 ≥60 AC;DC+
