Stainless Steel Wires

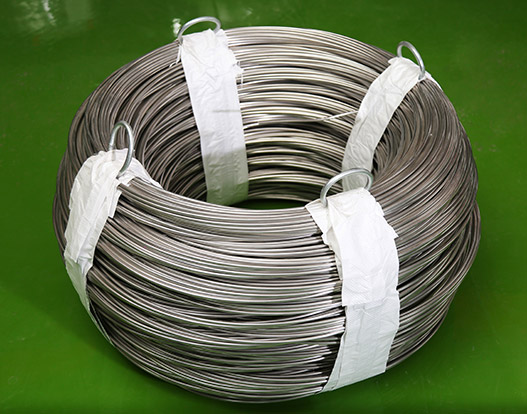

Electro Polishing Quality (EPQ) Wires

Electro Polishing Quality (EPQ) Wires

Electro Polishing Quality (EPQ) Wires

Size Range Tolerance Tensile(N/MM) Surface Condition/Finish Packaging
1.40 to 3.00 DIN h9

(± 0.02/0.03 mm)

 700 to 1200 N/M²(Customisation Possible) 1/8 Hard

1/4 Hard

1/2 Hard

3/4 Hard - Spring Hard/ Full Hard - Mirror Bright EPQ Finish

Soap Coated

Matte Finish

 Coils/Spool
3.01 & above ± 0.03 mm 30-300 kgs in coils & coil on metal spider
0.70-1.70 - Medium DIN h9

(± 0.02/0.03 mm)

 100-1200 kgs

Coil on metal spider
1.80-3.00 - Thick/Medium 100-1200 kgs

Coil on metal spider
3.00-7ø - Thick ± 0.03 mm

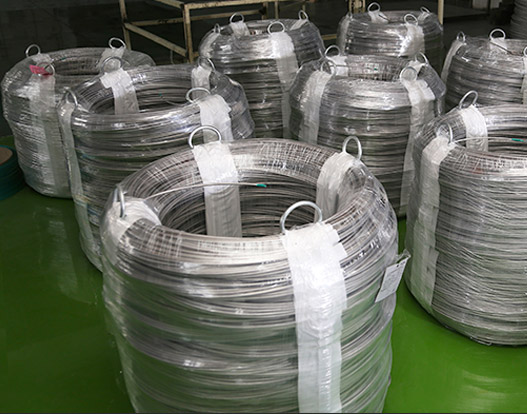

Cold Heading Quality (CHQ) Wires

Cold Heading Quality (CHQ) Wires

Cold Heading Quality (CHQ) Wires

Size Range Tolerance Finish Packaging
0.80 to 7.00 mm DIN h9; (± 0.03) Soap Drawn Coated Surface Coils

Pattern Laid Coil

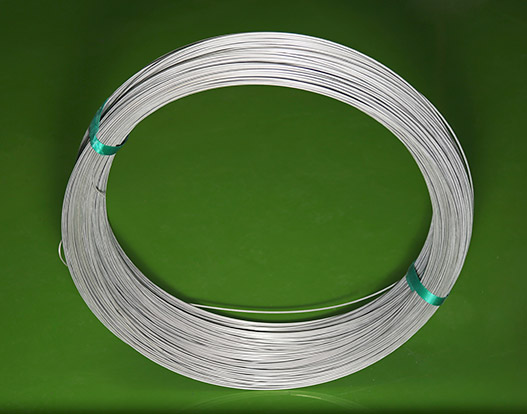

Core Wire in Coils / Cut Length

Core Wire in Coils / Cut Length

Core Wire in Coils / Cut Length

Item Size Range Packaging
Stainless Steel Core Wire in Coil 1.80 mm to 5.00 mm 100-500 kgs Coil on Metal Spider/Carrier
Stainless Steel Core Wire in Cut Length 1.60 mm to 5.00 mm 500-2000 kgs in wooden box

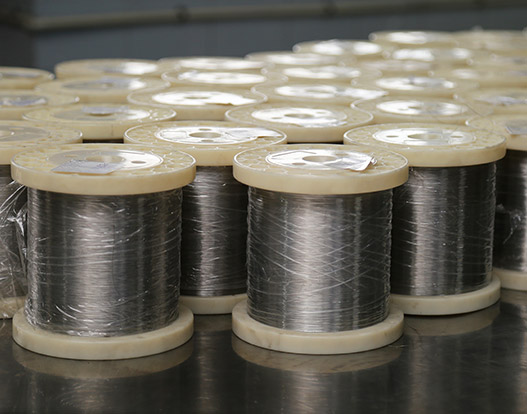

Stainless Steel Fine Wires

Stainless Steel Fine Wires

Stainless Steel Fine Wires

Size Range Finish Temper Packaging
0.10 mm to 0.070 mm (0.004” to 0.028”) Bright (Heavy Oil Coated/ Slightly Oil Coated/Without Oil Coated) Bright Annealed Spools

DIN - 100

125

200

250

355

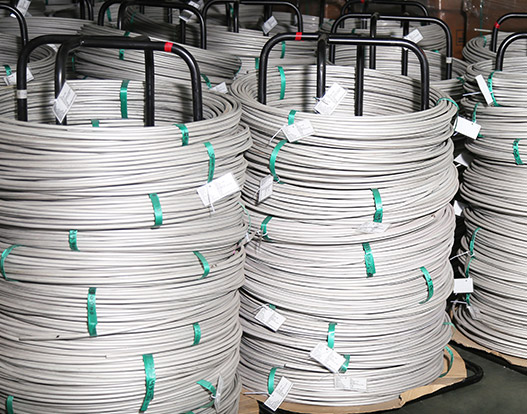

Stainless Steel Earthing / Lighting Conductor Wire

Stainless Steel Earthing / Lighting Conductor Wire

Stainless Steel Earthing / Lighting Conductor Wire

Size Finish Packaging
10ø HRAP ( HOT ROLLED

ANNEALED & PICKLED)

SUPER SOFT

SMOOTH MATTE FINISH

 10-12 Kgs

Coil on metal spider & in rows
23-25 Kgs

Coil on metal spider & in rows
48-50 Kgs

Coil on metal spider & in rows
500-1000 Kgs

Coil on metal spider & in rows
Coil Specification
Inner Dia (mm) (ID) 500 550 800 900 950
Outer Dia (mm) (OD) 750 800 900 1100 1150

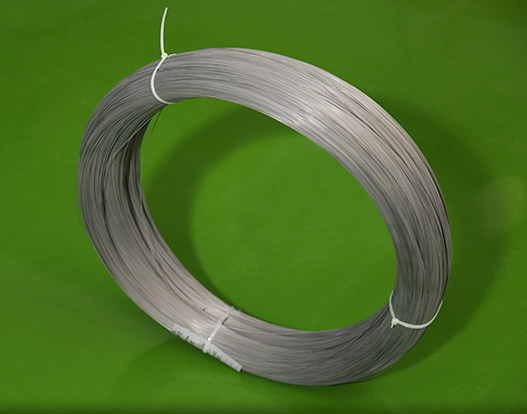

Spring Quality Wires

Spring Quality Wires

Spring Quality Wires

Size Range Finish Packaging
0.20 to 0.70 mm (0.008” to 0.028”) Bright On Spools - DIN 100

DIN 125

DIN 160

DIN 200

DIN 250

DIN 355
0.70 to 6.00 mm (0.028” to 0.236”) Soap Coated

Matte finish

 In Coils - 0.40-1.70 - 30 to 50 Kg
1.80-6.00 - 100 to 500 Kg
Special Features
Smooth Surface High Corrosion Resistance Excellent Heat Resistance Superior Coiling Efficiency High Fatigue Strength
Springs wire are produced as per
ASTM A313/ JIS G4314/ BS EN 10270

DIN EN 10270 - 1

3

DIN 17224

 DIN 17440 ISO 4454

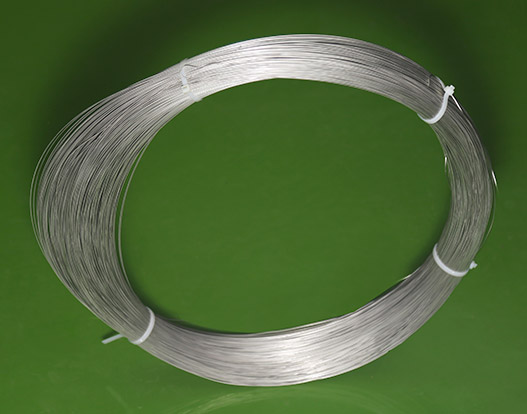

General Use Stainless Steel Wires

General Use Stainless Steel Wires

General Use Stainless Steel Wires

Size Range
0.70 mm to 10 mm (0.028” to 0.393”) Soap Drawn (Matte Finish)/ Grease Drawn (Bright Finish) :- Cleaned or with residual lubricant.
Packaging
Spools (Plastic/ Metal) Drums Bare Coils Carrier Metal/ Wooden Reels Cheese Coils(Acro Pack) Handi Pack

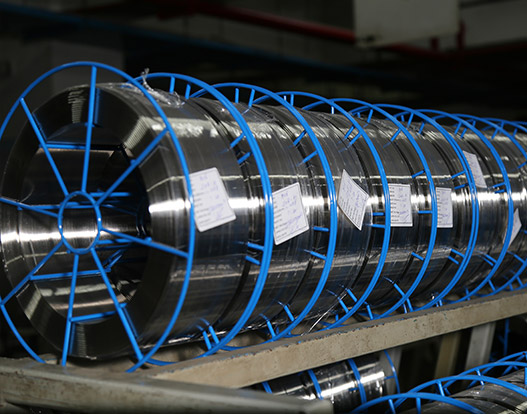

Stainless Steel Filler Wire

Stainless Steel Filler Wire

Stainless Steel Filler Wire
